CABLES

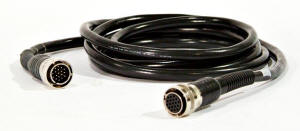

The Fusion system features a durable high flex molded cable with “quick on - quick off” twist and lock connectors.  Main Cables & Extension Cables are available in either a straight or 90 degree connector at the tool end.  One main cable must be used with each tool / controller.  Extension cables are typically used in “whip” configurations, to afford quick replacement of a shorter end instead of a complete longer cable.  Recommended cable length - 75 feet or less Maximum cable length - 100 feet (Noise free).

Used on new style tools

Part Number Description Length(M/ft)
C15-F7-M05 Main Cable Straight Female Plug 5 / 16.4
C15-F7-M10 Main Cable Straight Female Plug 10 / 32.8
C15-F7-M15 Main Cable Straight Female Plug 15 / 49.2
C15-EF7-M2 Extension Cable Straight Male / Female Plug 2 / 6.6
C15-EF7-M5 Extension Cable Straight Male / Female Plug 5 / 16.4
C15-EF7-M10 Extension Cable Straight Male / Female Plug 10 / 32.8

FEB-1651 90 degree cable adapter

fusion cable adapter

FEB-1651 90 degree cable adapter



Used on previous style tools

MODEL DESCRIPTION LENGTH(M)
FEB-1309-M5 Main Cable Straight Female Plug 5
FEB-1309-M10 Main Cable Straight Female Plug 10
FEB-1309-M15 Main Cable Straight Female Plug 15
FEB-1311-M5 Main Cable 90 Degree Female Plug 5
FEB-1311-M10 Main Cable 90 Degree Female Plug 10
FEB-1311-M15 Main Cable 90 Degree Female Plug 15
FEB-1310-M1 Extension Cable Straight Male / Female Plug 1
FEB-1310-M2 Extension Cable Straight Male / Female Plug 2
FEB-1310-M3 Extension Cable Straight Male / Female Plug 3
FEB-1310-M5 Extension Cable Straight Male / Female Plug 5
FEB-1310-M10 Extension Cable Straight Male / Female Plug 10
FEB-1312-M1 Extension Cable Straight Male / 90 Degree Female Plug 1
FEB-1312-M2 Extension Cable Straight Male / 90 Degree Female Plug 2
FEB-1312-M3 Extension Cable Straight Male / 90 Degree Female Plug 3
FEB-1312-M5 Extension Cable Straight Male / 90 Degree Female Plug 5
FEB-1312-M10 Extension Cable Straight Male / 90 Degree Female Plug 10
FEB-1301 Null Modem Cable (Serial 9 pin - laptop to controller) 6
FEB-1331 Ethernet Crossover Cable (RJ45 - laptop to controller) 6



Maximum extension cable length is 15 meters.
